SKIRT LAMP
Layered metal lamp available in multiple colour configurations.
All prices ex VAT / delivery
GALLERY
COLOUR FINISH OPTIONS
SUSPENSION OPTIONS

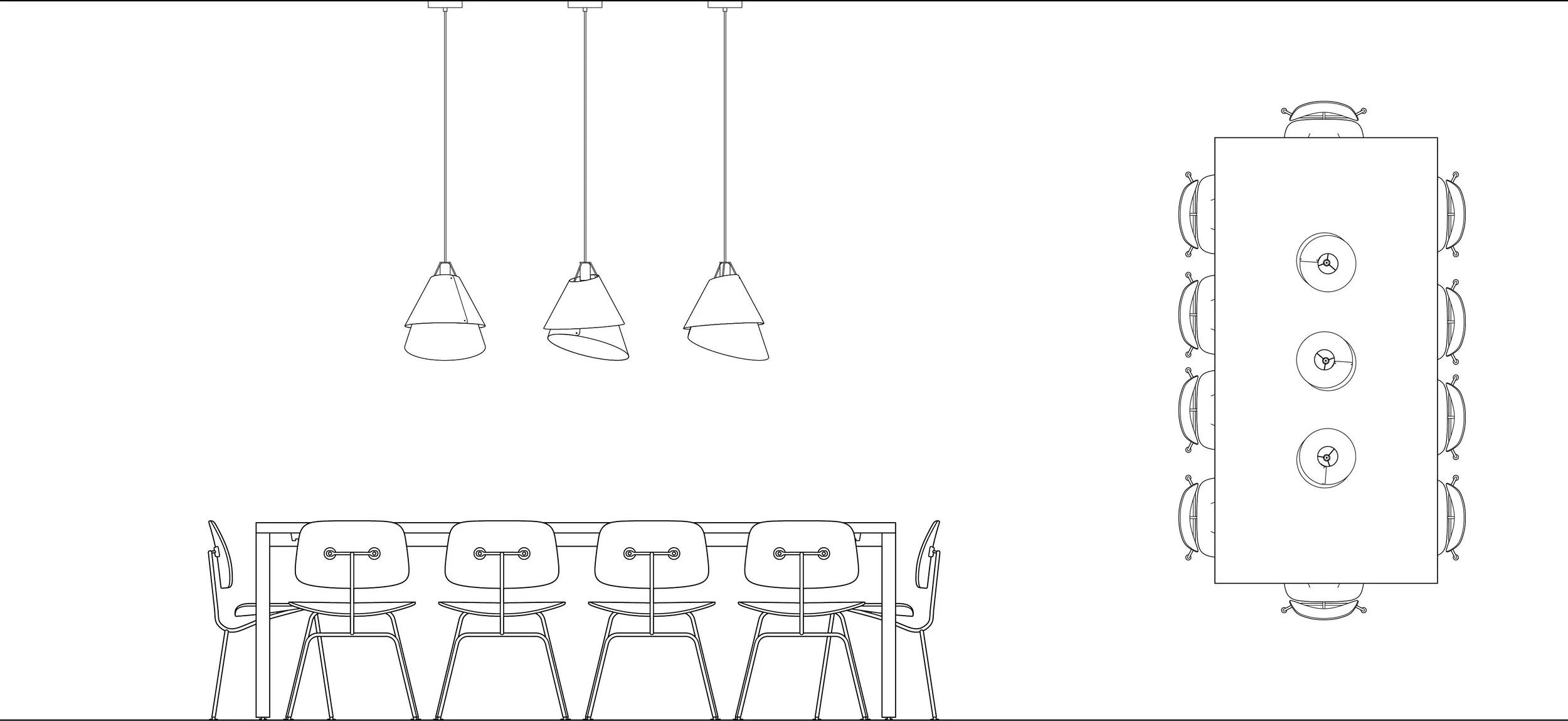

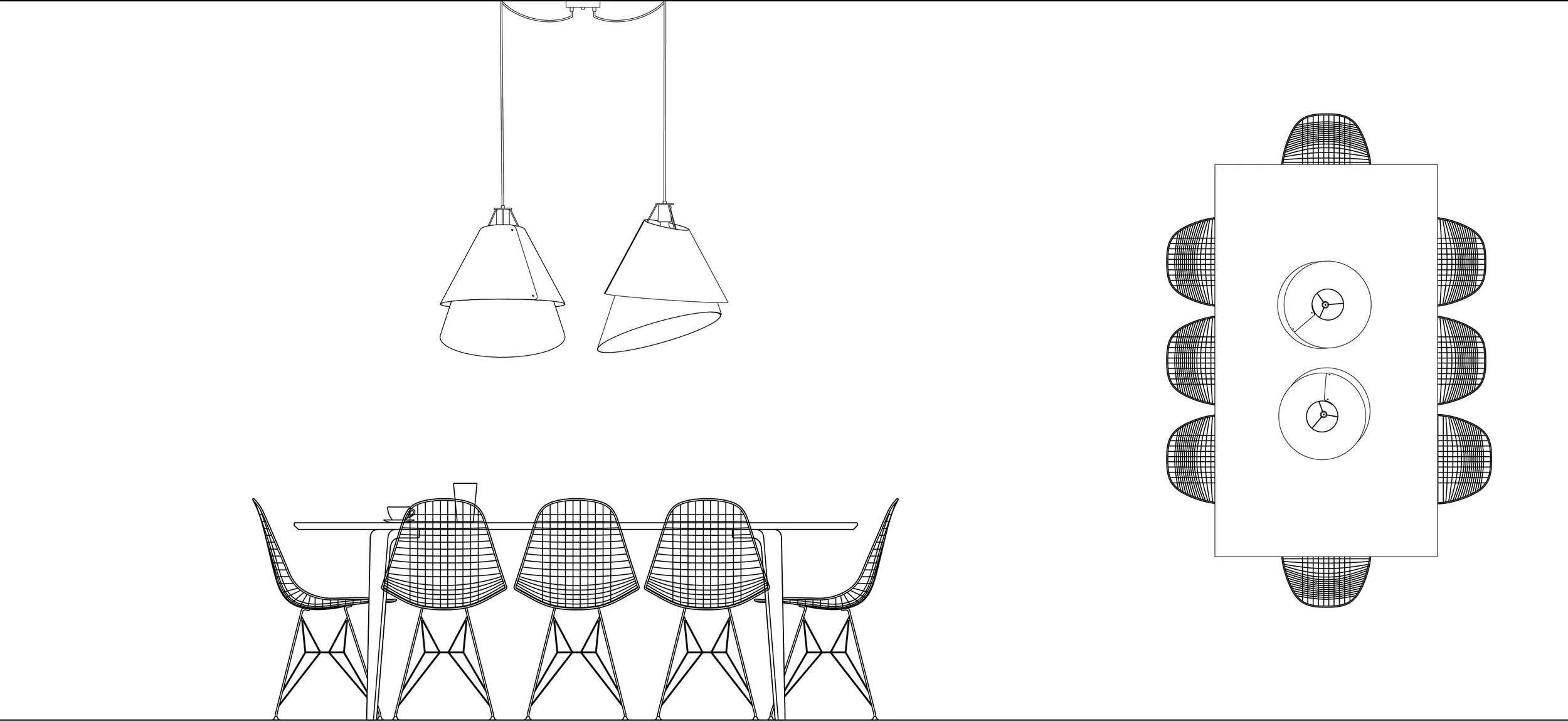

Small pendants hanging from a single ceiling canopies (table size: 1200 x 2400 x 750mm)
Medium pendants hanging from a single ceiling canopy with draped cabling (table size: 1200 x 2100 x 750mm)
Medium pendants hanging from a individual canopies (Table size: 1600 x 3500 x 750mm)

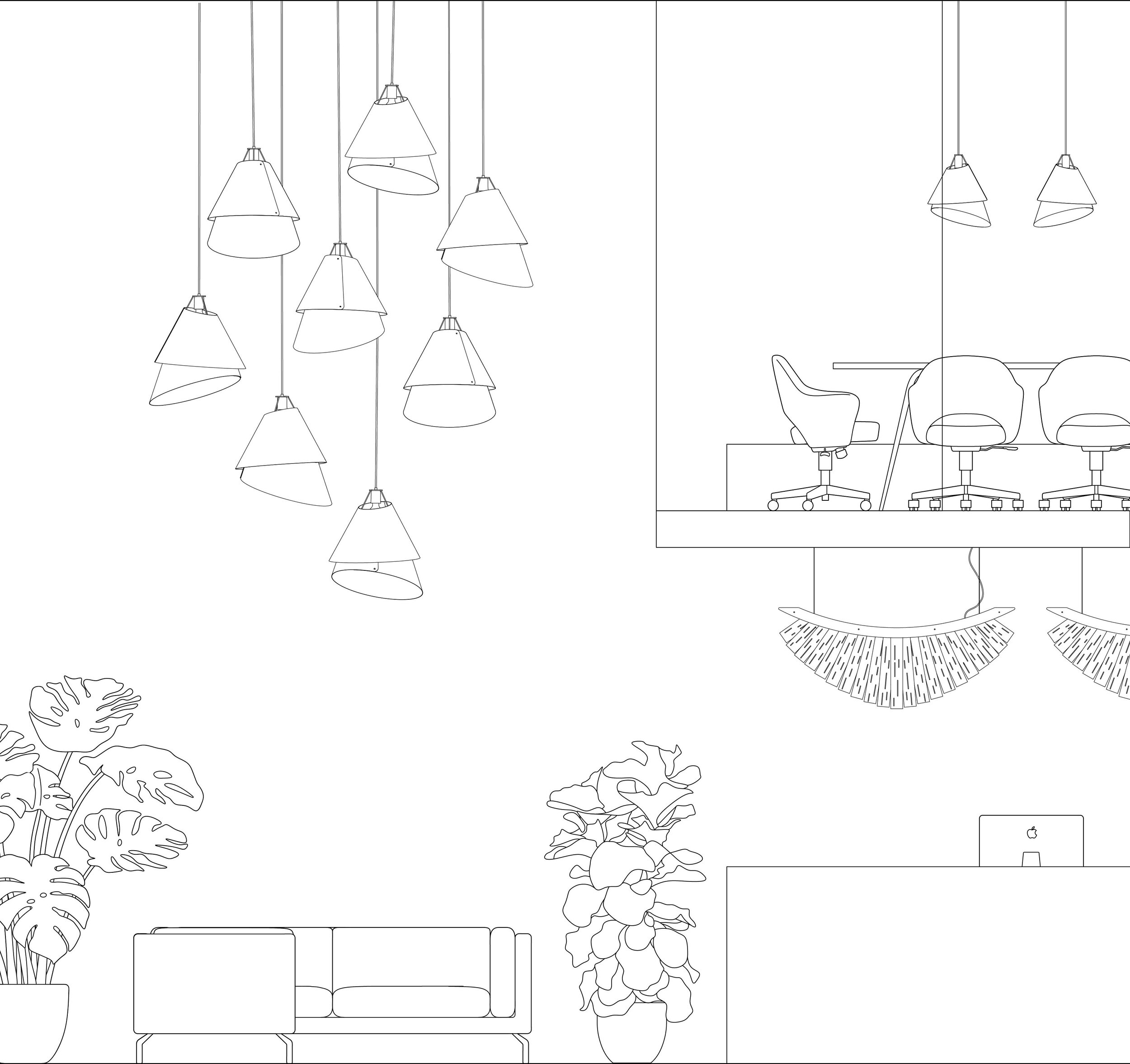

Medium pendants in double volume space, hung at various heights (ceiling: 5400mm)
ROOM WITH NO DOWNLIGHTS multiple pendants with hidden bulbs, resulting in no hotspots to catch the eye

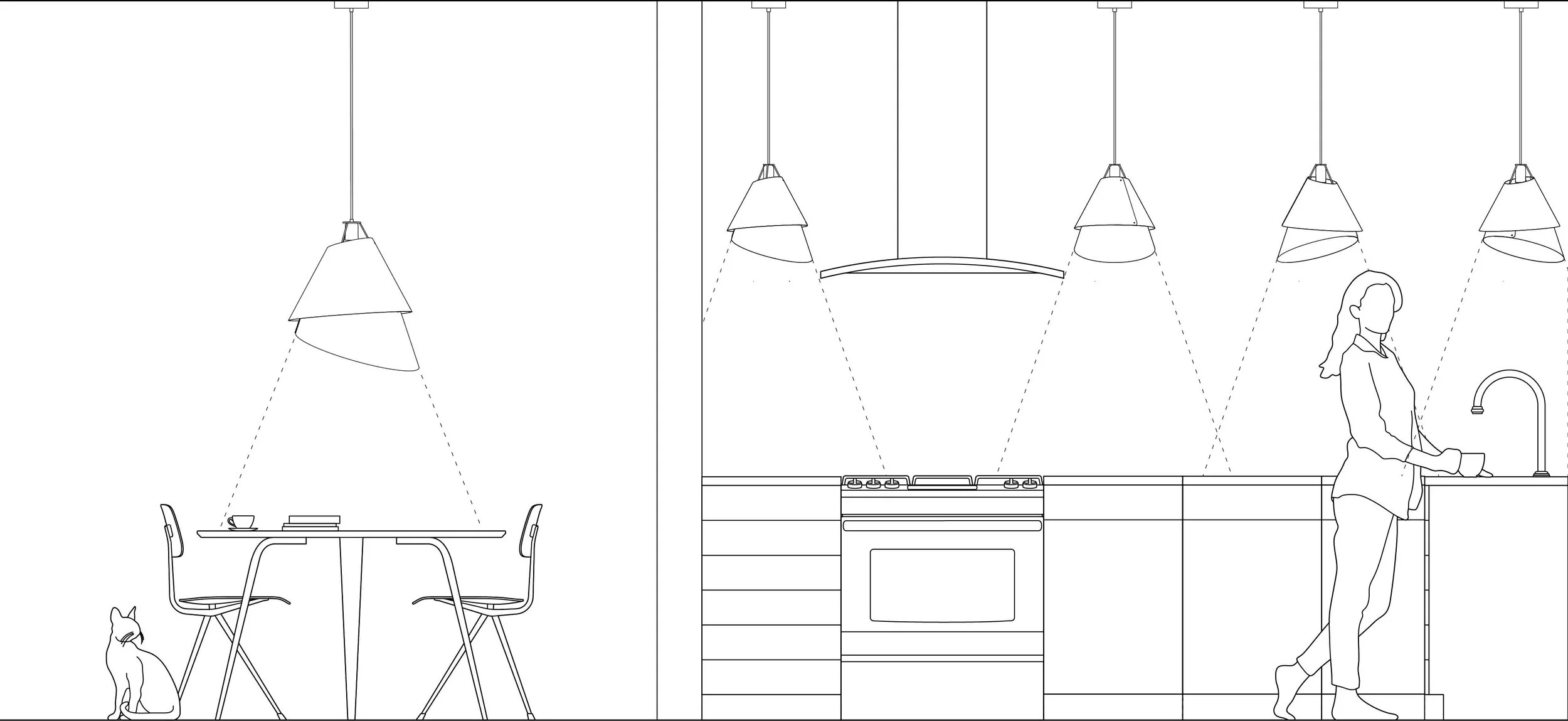

KITCHEN TASK LIGHT: 3000-4000K 810 lumen bulbs for the work surfaces.
DINING LIGHT: 5.5W A40, ambient LED bulb, 470 lumens

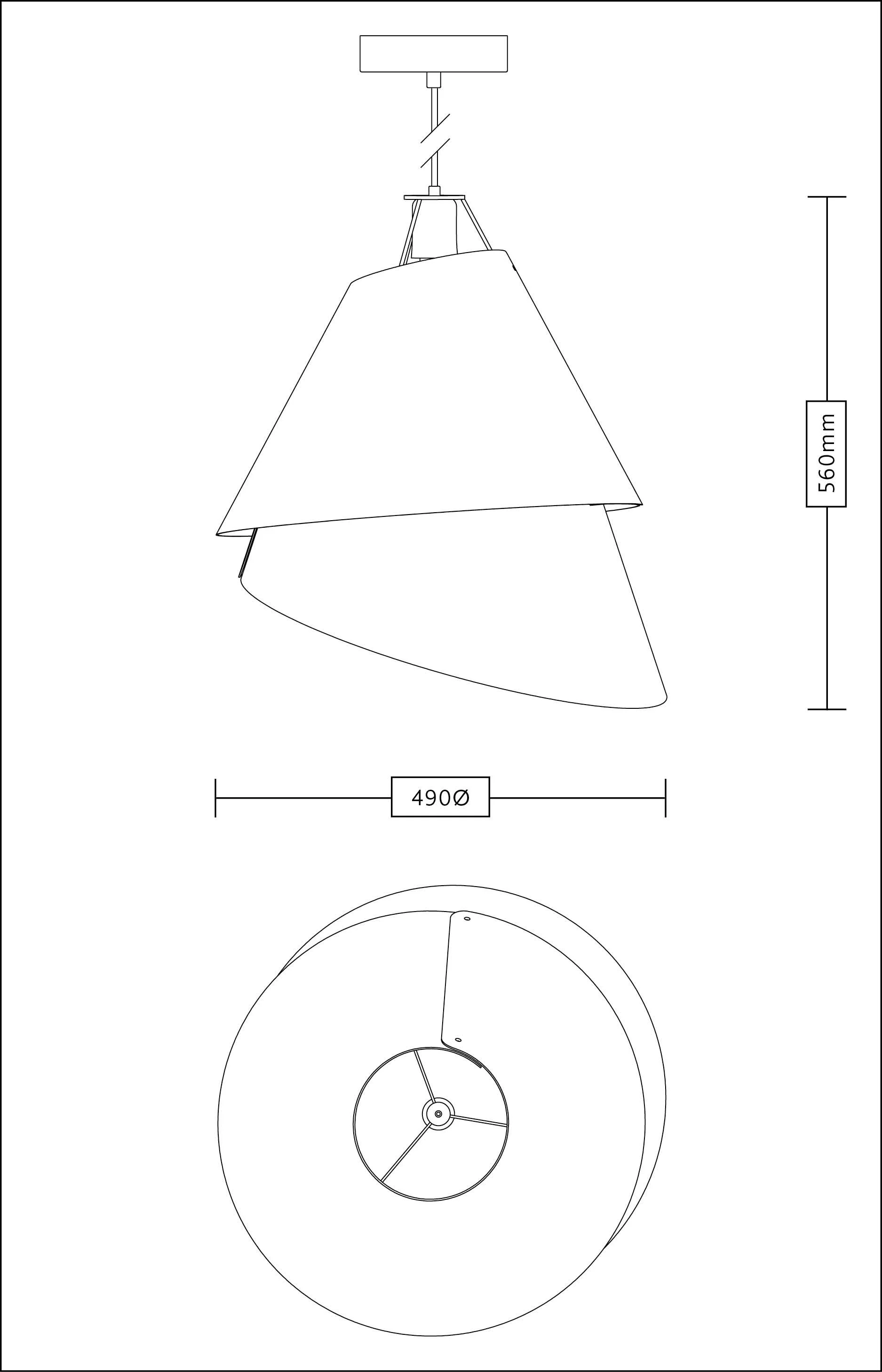

SKIRT SIZING
A CEILING CANOPY 127Ø x 27mm | B ELECTRIC CABLING 1500mm

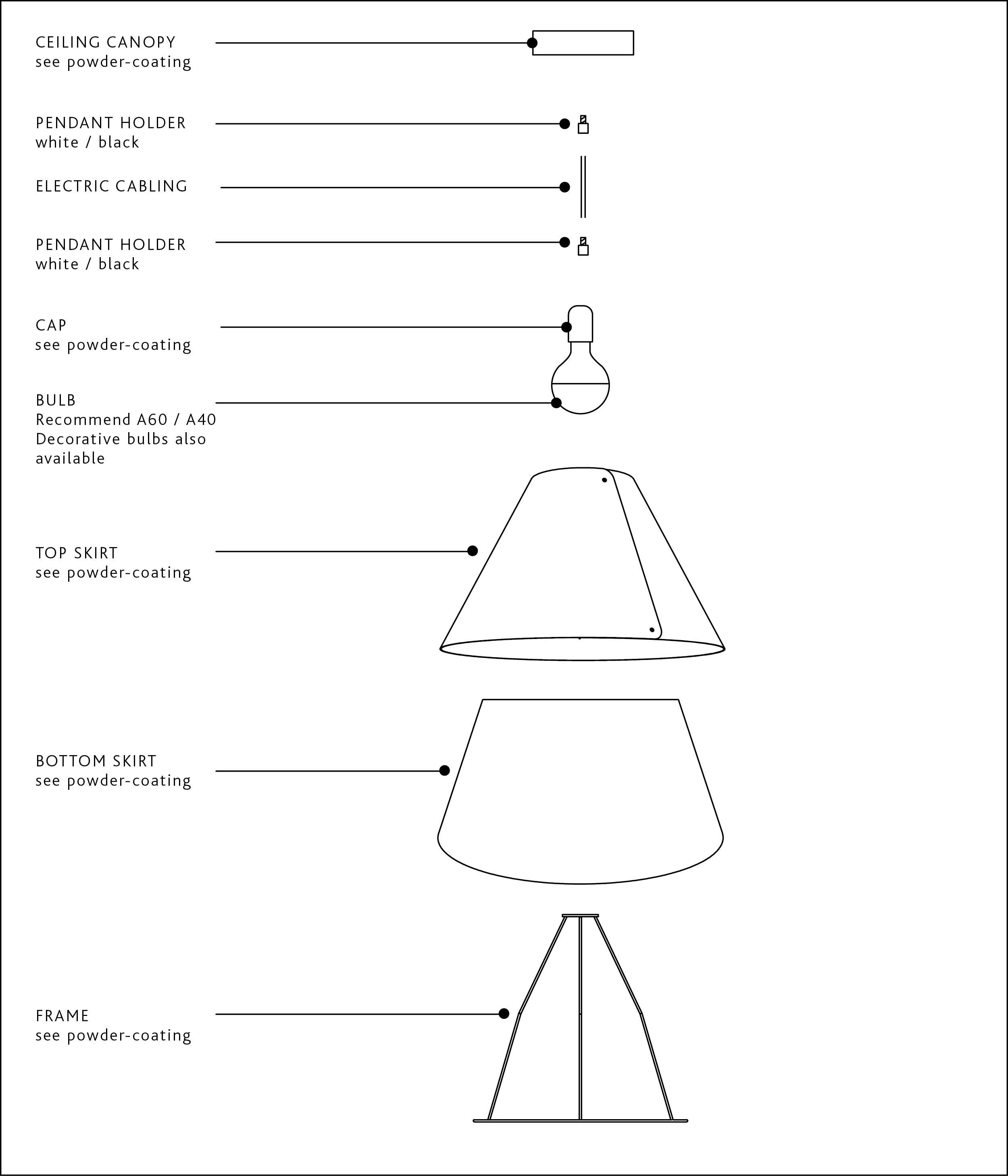

HOW TO CUSTOMISE THE SKIRT LAMP
LAMP SPECIFICATIONS
SKIRT SIZING: small / medium
SKIRT WEIGHTS: small @ 1.5kg / medium @ 4.7kg
MATERIAL: mild steel
FINISH: powder-coating
ELECTRIC CABLING: 1500mm supplied
PART SPECIFICATIONS
ELECTRIC CABLING
2 or 3 core, 0.75mm2, 220-240V
double PVC insulation,
with or without colour braid
LAMP HOLDER
TYPE: E27 / Plain casing
Casing: PET GF, T1210
Nominal rating: 4/250
Push in twin terminals: 0.5-2.5mm2
